Name: Ashford Traditional Spinning Wheel
Brand: Ashford
SKU: ASH-TDSW
Price: 829.0 USD
Availability: InStock

A handcrafted traditional single drive spinning wheel made from durable natural wood, with a smooth finish enhancing its timeless aesthetic. Perfect for spinning enthusiasts, it features precisely turned wheel spokes and a functional bobbin holder loaded with high-quality red yarn.

An elegant double drive spinning wheel with a high-gloss lacquered finish, reflecting exquisite craftsmanship. It boasts a large wheel with ornate spindles and a reliable foot pedal, making it a sought-after tool for professional yarn crafters and textile makers.

$829.00

Shipping calculated at checkout.

Quantity

Low stock - 4 items left
Backordered, shipping soon

For over 90 years, the Ashford Traditional has remained one of the world’s most widely used spinning wheels. Its large 56cm (22") drive wheel, upright design, and solid Beech hardwood construction offer smooth momentum and long-term durability.

Available in both Single Drive (Scotch tension) and Double Drive, the Traditional model offers versatility for a wide range of spinning styles.

Choose the setup that matches your preference - both models share the same classic structure, but differ in tension system and drive ratios.

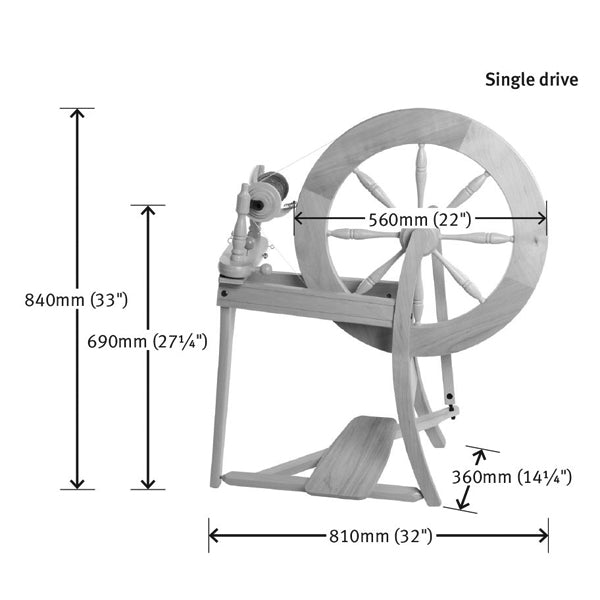

Traditional Single Drive (Scotch Tension)

The Single Drive Traditional uses a Scotch tension system, allowing easy, precise control of yarn take-up. This version is often chosen for its straightforward setup and consistent adjustment. The bobbins are quick and easy to change. Scotch tension and 4 speed flyer allow for a wide variety of yarn to be spun. Horizontal adjustment of the maiden bar allows perfect alignment with the 4 speed whorl.

Key Features for Single Drive

Single Drive - Unfinished or Lacquered
Single Treadle
Lazy Kate
4 Bobbins
Threading Hook
Wheel diameter: 22" (56cm)
Orifice Diameter:3/8" (1cm)
Orifice Height: 27.25" (69cm)
Weight: 17.5 lb. (8kg)
Bobbin Capacity: 3 - 4 oz. (100gm)
Single Drive Ratios: 7, 9, 12, 17:1
New Zealand Silver Beech

Technical Specifications – Single Drive

Assembly: Assembly required
Wheel Diameter: 56cm (22")
Weight: 8kg (17½lb)

Orifice Size: 10mm (⅜")
Orifice Height: 69cm (27¼")

Bobbin Capacity: 100g (3–4oz)
Bobbins Included: 4 standard bobbins

Tension System: Scotch tension
Drive Ratios: 7:1, 9:1, 12:1, 17:1

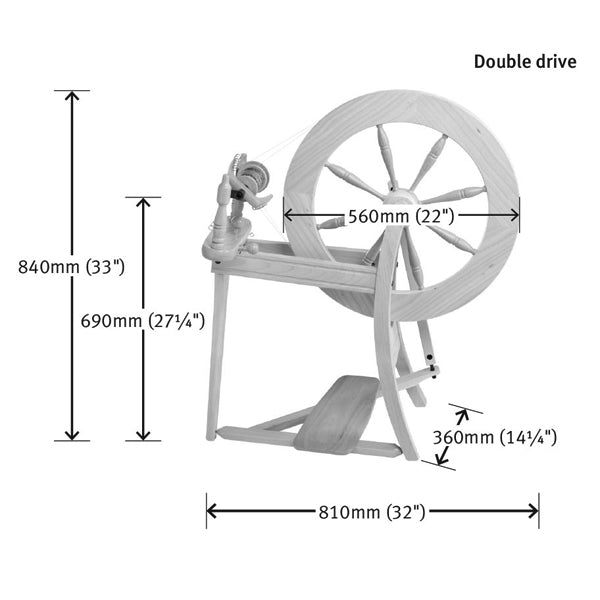

Traditional Double Drive

The Double Drive version uses a double drive tension system, where the drive band runs around both the flyer and bobbin. This configuration allows fine adjustment of take-up by modifying band tension.

Key Features - Double Drive

Double Drive - Unfinished or Lacquered
Single Treadle
Lazy Kate
4 Bobbins
Threading Hook
Wheel diameter: 22" (56cm)
Orifice Diameter:3/8" (1cm)
Orifice Height: 27.25" (69cm)
Weight: 17.5 lb. (8kg)
Bobbin Capacity: 3 - 4 oz. (100gm)
Double Drive Ratios: 7.5, 9.5, 13:1 (16:1 bobbin lead)
New Zealand Silver Beech
Some Assembly Required

Technical Specifications – Double Drive

Assembly: Assembly required
Wheel Diameter: 56cm (22")
Weight: 8kg (17½lb)

Orifice Size: 10mm (⅜")
Orifice Height: 69cm (27¼")

Bobbin Capacity: 100g (3–4oz)
Bobbins Included: 4 double drive bobbins

Tension System: Double drive
Drive Ratios: 7.5:1, 9.5:1, 13:1, 16:1

Optional Accessories:

Download Ashford Traditional Spinning Wheel Assembly & Instructions
